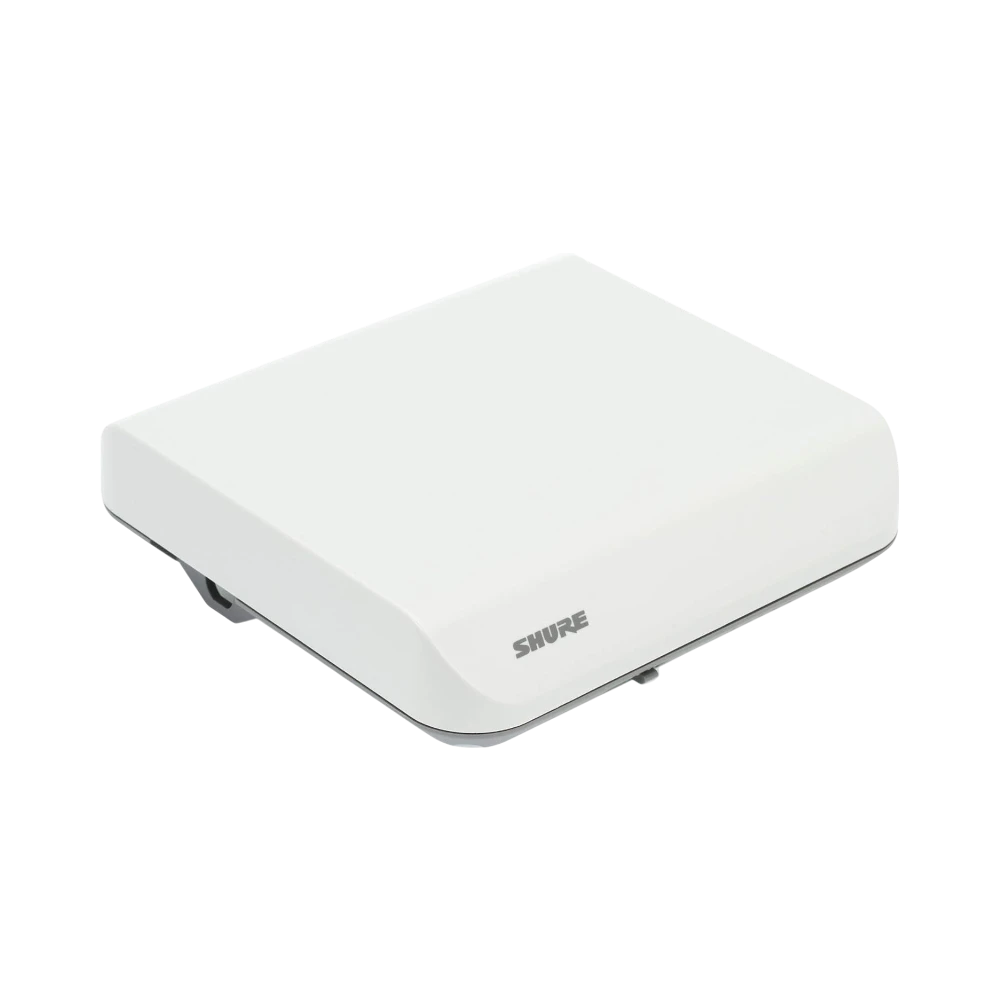

Shure UA864US Wall-Mounted Wideband Antenna (470-698 MHz)

The Shure UA864US is an antenna that mounts on a wall and handles a wideband frequency range for wireless microphone systems operating between 470 and 698 MHz. It serves as a reliable RF front end in spaces where a traditional paddle style antenna would draw unwanted attention.

The design includes a gain switch with four settings at -20, -10, 0, or +10 dB, so installers can compensate for very short or very long cable runs without relying on external amplifiers. A coverage pattern of about 100 degrees at the center of the band lets presenters, instructors, or performers move freely while the system maintains consistent reception.

For straightforward installation, the UA864US ships with an attached BNC cable that supports both surface mounting and through-wall routing. The panel sits flush on walls, ceilings, or even metal surfaces, and the enclosure is molded in a neutral white color that accepts paint for a truly discreet finish.

These details make the antenna a natural fit for boardrooms where aesthetics are paramount, classrooms that need dependable communication tools, and any fixed indoor venue seeking strong wireless performance without visible hardware. Integrators can specify one model and know it will adapt to a range of room sizes, cable runs, and architectural styles.

• Operates across 470 to 698 MHz to cover most wireless microphone bands
• Four position gain control at -20, -10, 0, or +10 dB adapts to varying cable lengths and transmitter distances
• Approximately 100 degree coverage pattern at the center frequency delivers broad signal capture
• Built in BNC cable supports both surface and through-wall routing for tidy cable management
• Paintable enclosure blends with room décor for unobtrusive permanent installations
