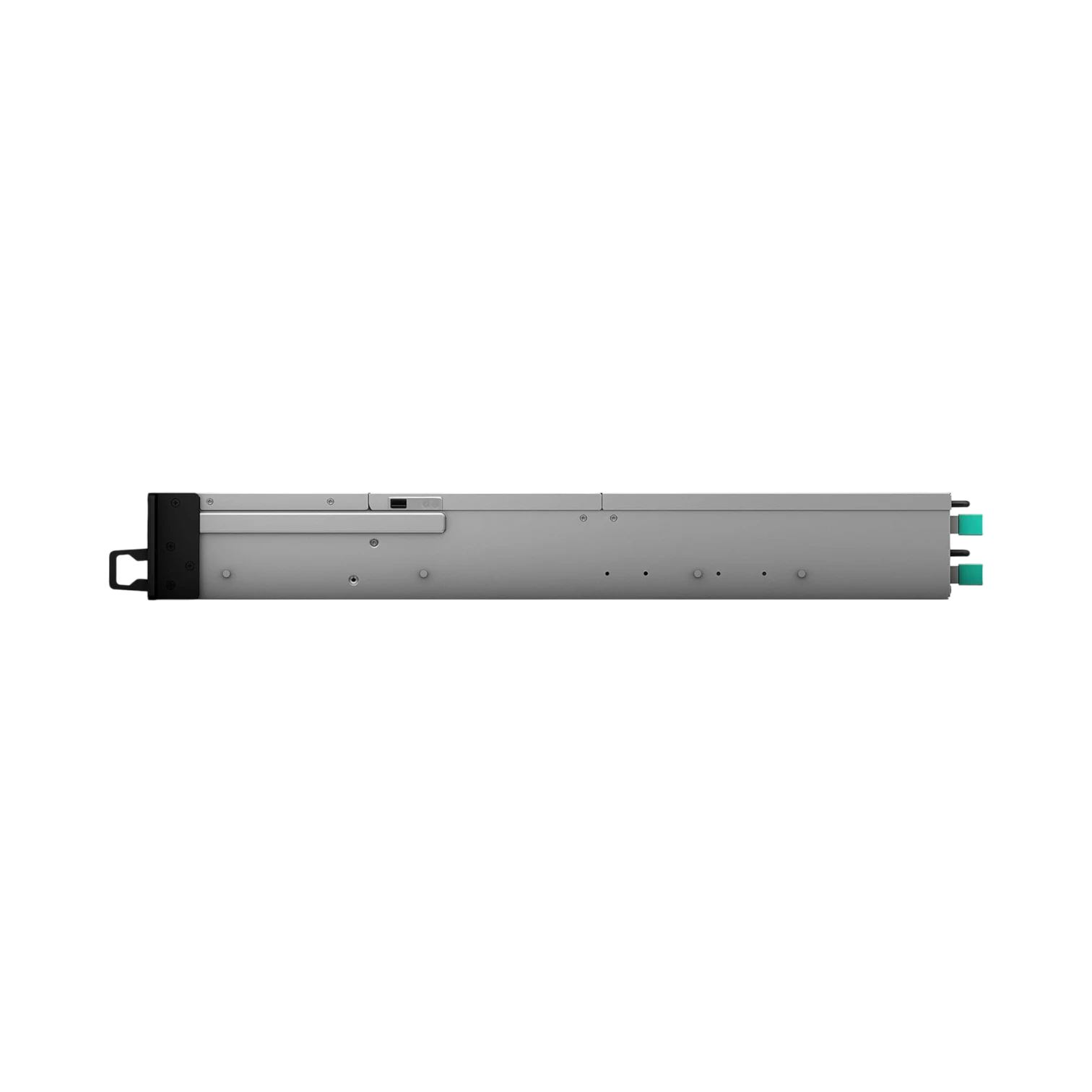

Synology RX1217RP 12-Bay Storage Expansion Unit

The Synology RX1217RP is a 12-bay expansion chassis that attaches to your existing RackStation and adds immediate storage without forcing any downtime. Connecting with the supplied Infiniband cable, it appears inside Synology DiskStation Manager as if the bays were built into the original server, so you can start creating or extending volumes right away.

The enclosure accepts both 2.5 inch and 3.5 inch drives, giving you the freedom to mix large-capacity hard disks with fast solid-state media. Each tray is hot swappable, allowing you to add or replace drives while users continue to work and services stay online.

For round-the-clock reliability, Synology equips the RX1217RP with two 500 W power supplies that back each other up. If one supply fails, the second keeps everything running, protecting your data and avoiding unexpected shutdowns. The unit powers on and off in sync with the host RackStation, so once it is installed, daily operation is hands-off.

Many organizations use the RX1217RP to grow production storage for file sharing, media archives, or surveillance footage, while others set it up as a separate backup target that lives in the same rack. Either way, the chassis integrates cleanly in a standard server cabinet, making it a practical choice for offices, creative studios, and IT teams that need dependable, scalable capacity without a complex rollout.

• Adds 12 drive bays to a compatible Synology RackStation
• Supports 2.5 inch and 3.5 inch HDDs or SSDs
• Hot swappable trays enable drive changes with zero service interruption
• Included Infiniband cable provides a high-speed connection to the host
• SATA interface offers up to 6 Gbps per drive
• Dual 500 W power supplies deliver redundant power for continuous operation
• Can be configured as a dedicated backup volume for extra protection
• Automatically powers on and off alongside the RackStation
• Managed entirely through Synology DiskStation Manager
• Ships with two AC power cords and an accessory pack
