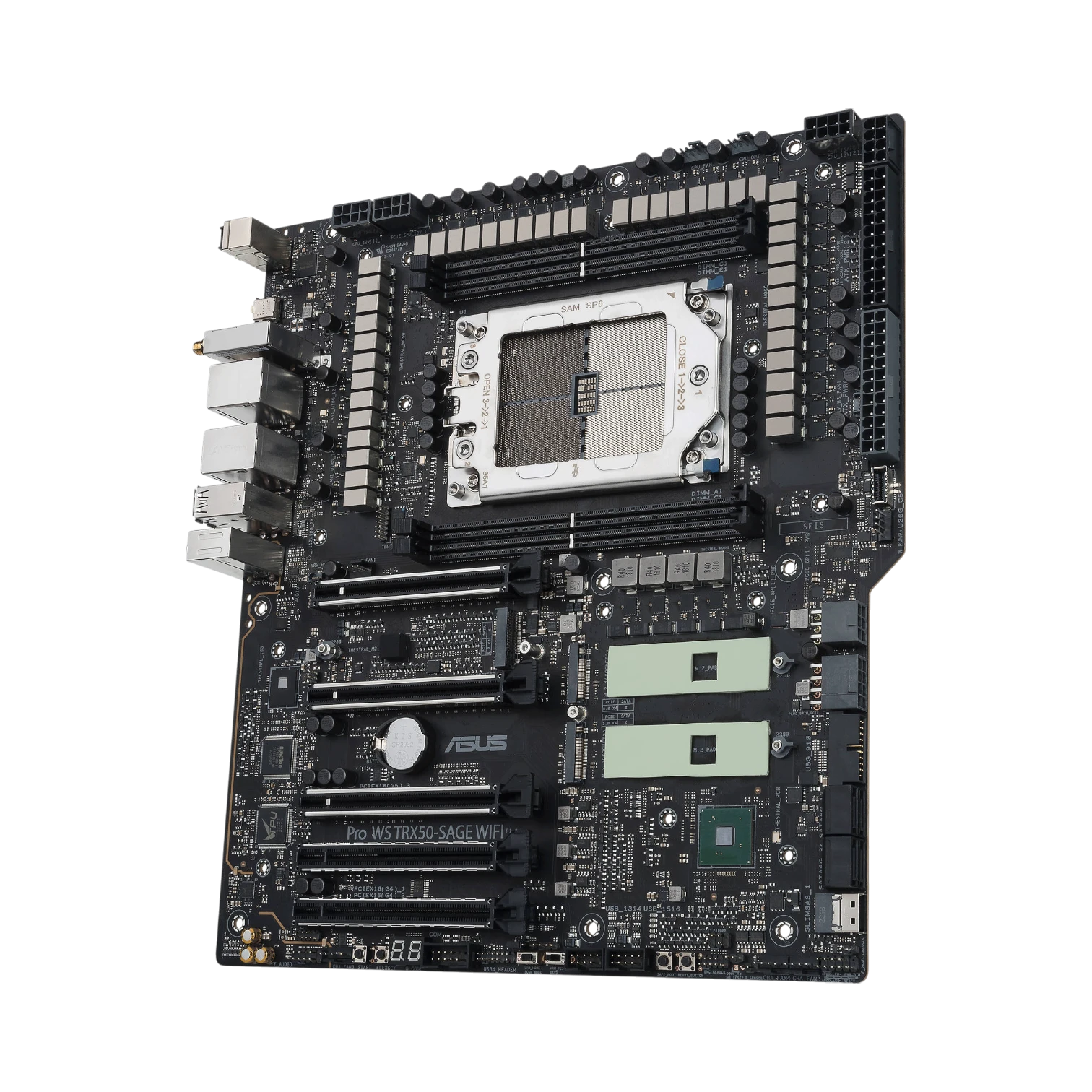

ASUS Pro WS TRX50-SAGE WIFI sTR5 CEB Motherboard

The ASUS PRO WS TRX50-SAGE WIFI is a workstation-grade motherboard for professionals who rely on AMD Ryzen Threadripper power to keep large projects moving. It pairs the sTR5 socket with support for both Ryzen Threadripper PRO 7000 WX-Series and standard Threadripper processors, so you can choose a CPU that fits your workflow, whether you edit 8K video, render complex 3D scenes, or run detailed simulations.

Four memory slots accept up to 1 TB of ECC DDR5 R-DIMM, giving editors, animators, and engineers the capacity needed for bulky timelines and massive datasets. Three full-size PCIe 5.0 x16 slots stand ready for multiple graphics cards, AI accelerators, or high-bandwidth capture devices, while onboard power connectors keep those cards supplied during sustained heavy loads.

Fast local storage is covered by three M.2 slots, two at PCIe 5.0 speed for scratch drives that demand maximum throughput and one at PCIe 4.0 for secondary tasks. A SlimSAS port adds room for another PCIe 4.0 NVMe drive, and four SATA III ports with RAID options handle large archival arrays.

When projects need to move across the network, the board’s integrated 10 Gb and 2.5 Gb Ethernet controllers provide low-latency wired connections. Wi-Fi 7 with Bluetooth 5.4 helps untether flexible workspaces and simplifies pairing with peripherals. A rear USB-C 20 Gbps port and an internal USB4 header prepare the system for the fastest external drives and high-resolution docking stations.

Under constant load, active VRM cooling, reinforced PCIe slots, and high-grade components maintain stability around the clock, even in warm studios or crowded server rooms. The result is a dependable foundation for creators and professionals who cannot afford downtime.

• AMD sTR5 socket supports Ryzen Threadripper processors with up to 96 cores
• Up to 1 TB of ECC DDR5 R-DIMM memory across four slots
• Three PCIe 5.0 x16 slots accommodate high-end graphics or accelerator cards
• Three M.2 slots, two at PCIe 5.0 and one at PCIe 4.0, deliver ultra-fast storage performance
• SlimSAS port provides PCIe 4.0 NVMe connectivity
• Four SATA III ports with RAID 0, 1, 5, and 10 support
• Integrated 10 Gb and 2.5 Gb Ethernet for low-latency wired networking
• Wi-Fi 7 and Bluetooth 5.4 cover modern wireless needs
• USB4 internal header and rear USB-C 20 Gbps port help future-proof peripheral support
• Active VRM cooling with heat sinks and hidden heat pipes preserves stability
• Onboard supplementary power connectors support multi-GPU configurations
• Components selected for continuous 24/7 operation in demanding thermal conditions
